Full-Solid Rubber Track | IAAF-Certified Seamless Surface for Stadiums, Schools & Tennis Courts
- Model
- PU-006
Item specifics
- Color
- red, blue, green, yellow, white, etc
Review
Description
Information

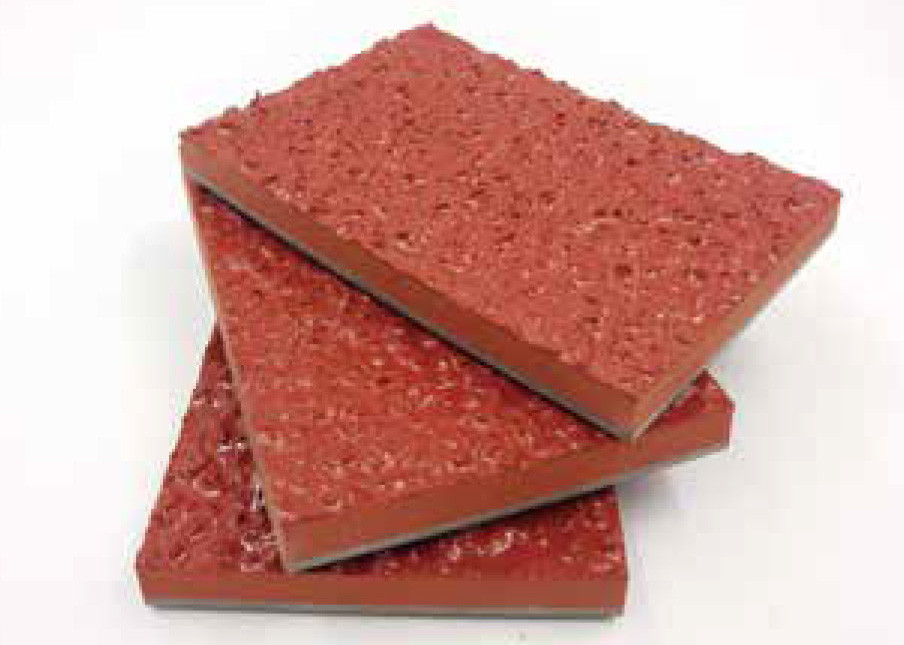

Full-solid Rubber Track

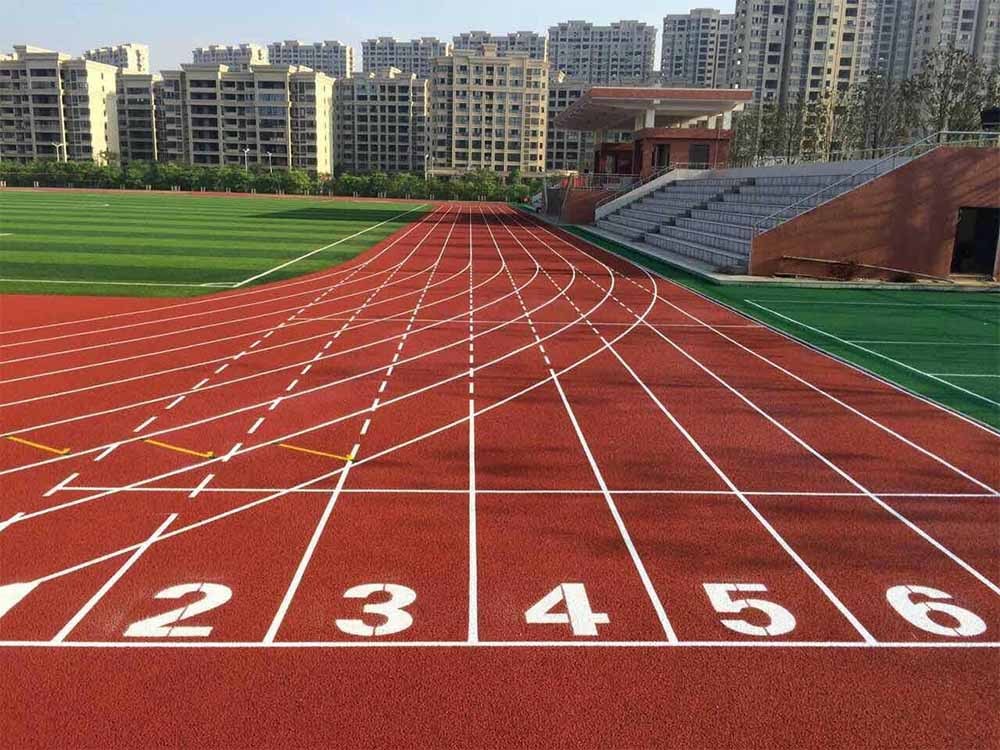

Full-solid rubber track is widely used in international and domestic large and medium-sized track and field fields, as well as high standard tracks for large, middle and primary schools. The service life is generally 15 years.
Scope Of Application
Recognized by lAAF and in line with international competition standards, the bottom layer is cast with two-component polyurethane, and the surface layer is mechanically sprayed with colored particles and polyurethane slurry.
Product Features
1. Environmentally friendly and non-toxic
2. Good weather resistance
3. Strong friction force
4. Excellent drainage
5. Excellent elasticity
6. Soft colors
7. Strong adhesive force
8. Convenient maintenance
Layered Diagram
Material Parameter
| Full-Solid Rubber Running Track Material Parameter | |
| Parameter Name | Parameter Value |
| Main Ingredients | Polyether Polyol,Isocyanate |
Density | 1-1.2g/cm³ |
| Polymer Content | 40-50% |
Shore A Hardness | ≥45 |
Tensile Strength (Mpa) | ≥0.6 |
Fracture Elongation Rate /% | ≥50 |
Vertical Deformation /mm | 1.0-3.0 |
Thickness | Average thickness 13mm, minimum not less than 10mm |
Slope Requirements | Longitudinal slope ≤ 0.1%, transverse slope ≤ 1.0% |
Evenness | The gap under a 2-meter straightedge shall not exceed 3mm. |
Drainage Performance | Non permeable type |
Heavy metals (lead, chromium, cadmium, mercury) /mg/kg | ≤2 |
Flame Retardancy | I |
TVOC Emissions mg/(㎡. h) | ≤5.0 |
Weather Resistance | Aging box 500H, performance qualified |
Nail Resistance | Anti spiked shoes |
Anti Slip Value (BPN. 20 ℃) | 90-110 (Dry Test) |
Ingredient List
| Full-Solid Rubber Running Track Ingredient List
13mm Plastic Track | |||
Name Of Proportioning Material | Model | Packaging Specifications | Net Weight |

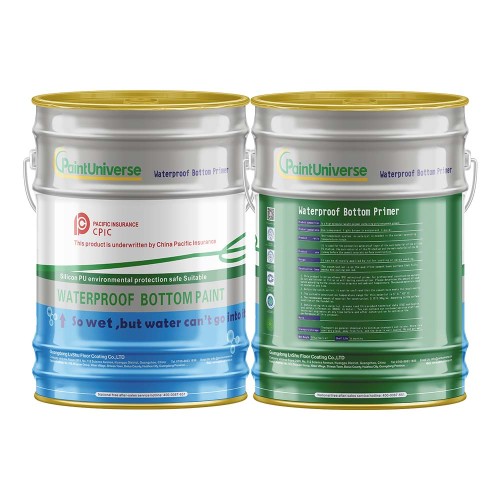

Waterproof Primer | LS-001 | 20L 275mm base diameter * 285mm surface diameter * 362mm height | 20kg/barrel |
Runway material PU | LS-005 | A：200L, B:300L 570mm diameter x 890mm height | A:200kg/barrel,B:300kg/barrel |
Running Track Topcoat Red/Green/Blue | LS-007 | A：200L, B:250L 570mm diameter x 890mm height | A:200kg/barrel,B:250kg/barrel |
EPDM granules (1-3mm) | LS-026 | / | 25kg/bag |
Eco-friendly Catalytic Agent | LS-009 | 275mm base diameter * 285mm surface diameter * 362mm height or else | 20KG/barrel or else |
Eco-friendly Diluent | LS-010 | 20L or 200L 275mm base diameter * 285mm surface diameter * 362mm height
or 570mm diameter x 890mm height | 20KG/barrel or 200kg/barrel |
| Marking Paint | LS-011 | 5L | 5.1kg/barrel |
| Lead time (within days) | 1-7 days, usually within 24 hours | ||
| Sales Method | Sell all materials for the ingredient list | ||

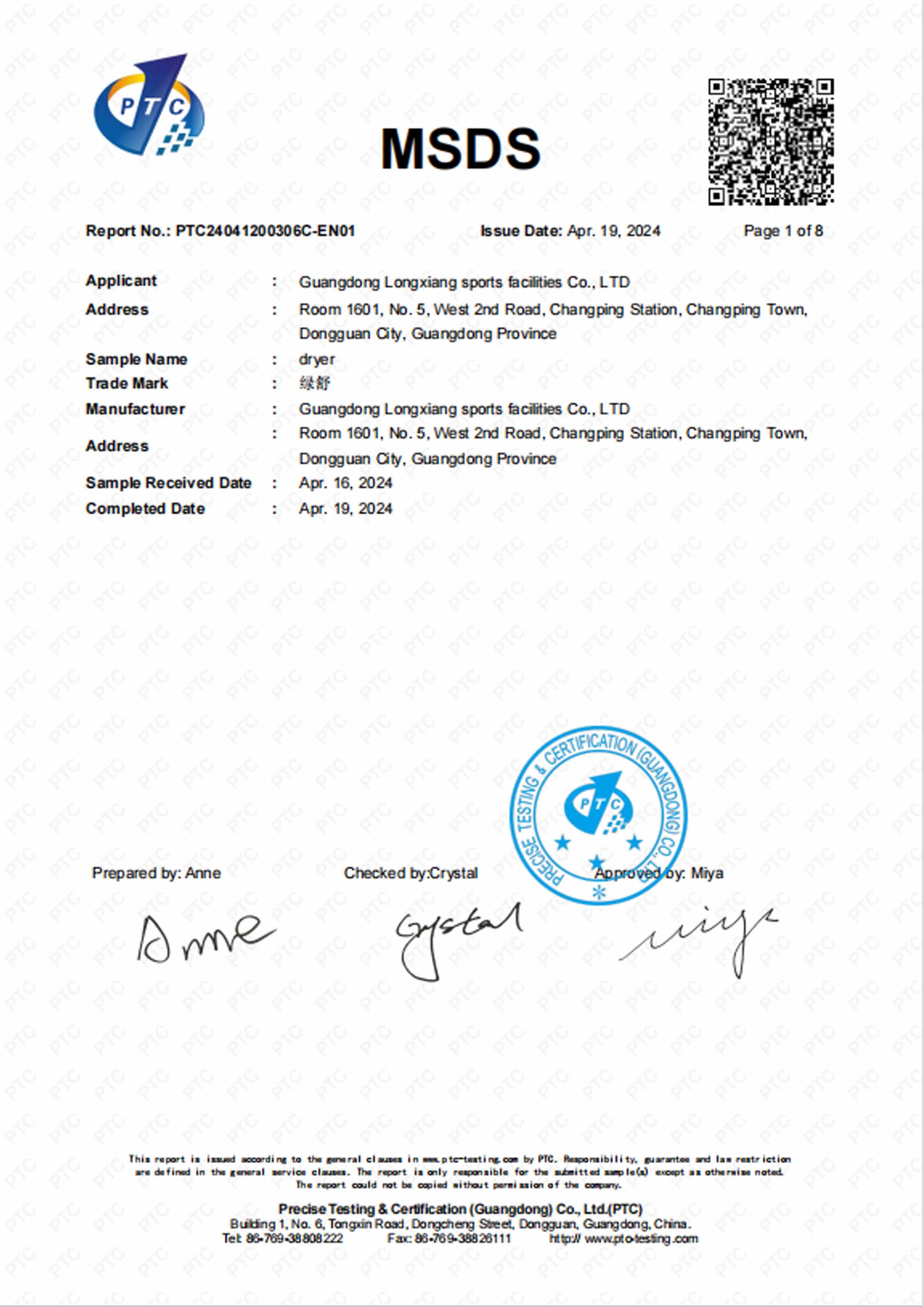

Product Certificate
