Exposed Aggregate Permeable Pavement | Eco-Friendly, Decorative Drainage Flooring
- Model
- PU-046
Review
Description
Information
Water Permeable Raw Material
Our exposed aggregate permeable pavement combines natural stone aggregates with porous concrete, designed for sponge cities, park trails, and commercial plazas. With a permeability rate ≥2.5mm/s, slip resistance (friction coefficient ≥70BPN), freeze-thaw resistance (-30℃ to 50℃), and UV-stable natural aesthetics, it ensures rapid stormwater drainage and decorative appeal. Easy installation and eco-compliance make it ideal for sustainable urban landscapes.
Scope Of Application
High-grade highways, urban thoroughfares, residential landscape roads, sidewaks, BRT roads, sports venues, tourist attractions, pedestrian streets in commercial areas, main sidewalks in urban centers, overpasses and underground crossings, bus shelters, taxi stops, etc.
Product Features
1. normal temperature construction, no seasonal restrictions, no fading, micro equipment construction;
2. no pollution, low cost;
3. no oxidation, high temperature resistance, anti-wear;
4. after the construction is completed, the traffic is fast.
Construction Technology
1. plain treatment: ensure that the road surface is smooth, dry, no oil, no ice and snow or water, no debris, the ground has cracks ordefects, must be repaired in advance;
2. paint bottom coating;
3. Scrape resin;
4. Sprinkle colored aggregate;
5. Cover construction.

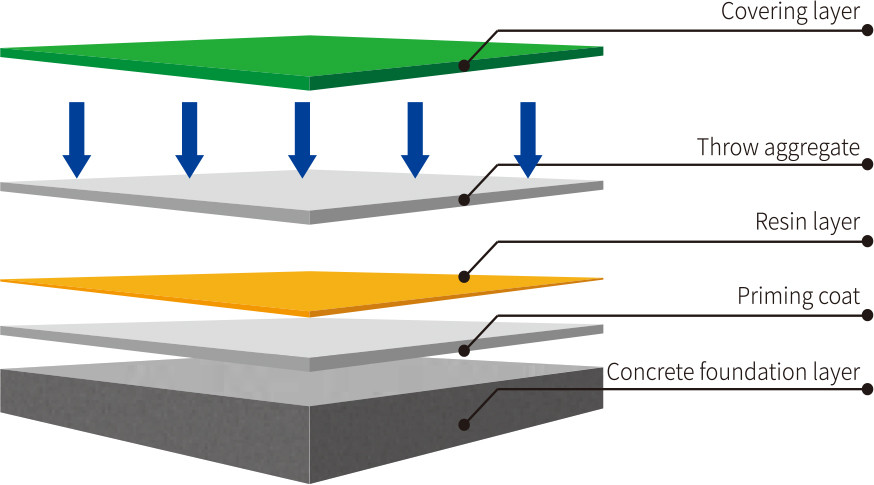

Construction Section Diagram
TECHNICAL INDEX
| PILOT PROJECT | INDEX |
Strength class | C25 |
Flexural strength (MPa) | > 4.5 |
Void ratio (%) | > 18 |
Permeability coefficient (mm/s) | ≥ 2.5
|
| Freeze-thaw cycle | D100 |
Road roughness error (mm) | ≤ 4 |
| Thickness deviation (mm) | ≤ 2
|
| Surface stone color | selectable |

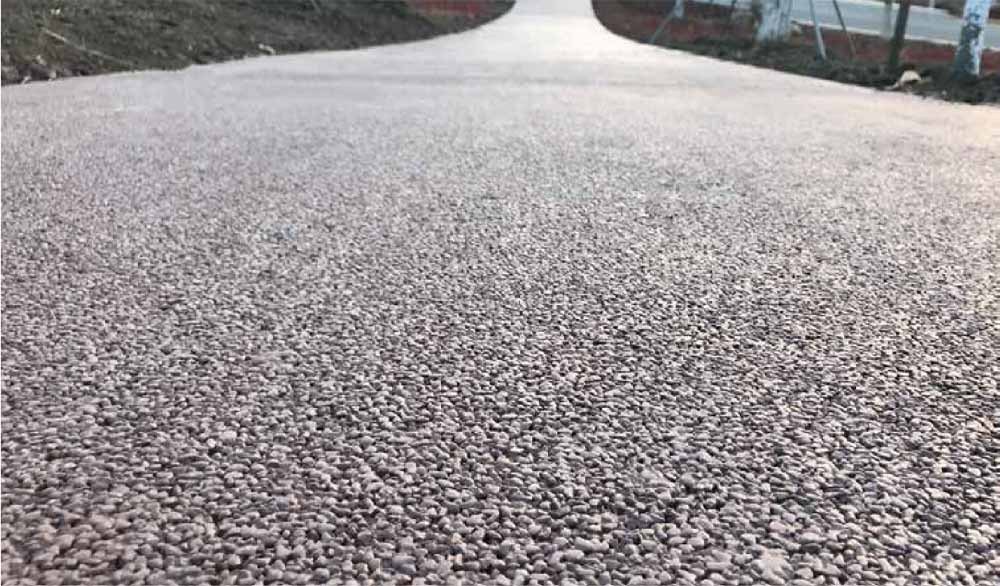

Project Case
