Permeable Paving Material | Eco-Friendly, High-Strength Stormwater Management Flooring
- Model
- PU-041
Review
Description
Information
Permeable Flooring Material
Our permeable paving material is an eco-friendly solution with a permeability rate ≥1.5mm/s, designed for sponge cities, park walkways, parking lots, and residential roads. It offers high compressive strength, slip resistance, freeze-thaw durability, and rapid stormwater drainage, effectively reducing urban flooding and heat island effects. Customizable colors and easy installation make it ideal for sustainable urban development.
Scope Of Application
It is widely used in municipal walks, garden paths, city squares, high-end residential areas, parking lots,business office buildings, outdoor sports venues (badminton courts, basketball courts, etc.).
Product Features
1. high water permeability;
2. good decorative effect;
3. good freeze-thaw resistance;
4. high heat dissipation;
5. high bearing capacity;
6. easy to maintain;
7. Durable.
Construction Technology
1. plain tamping;
2. sand layer;
3. vibration base;
4. permeable surface paving;
5. Spread flat,compacted and flattened;
6. film curing;
7. Cut expansion joints;
8. Brush the curingagent.

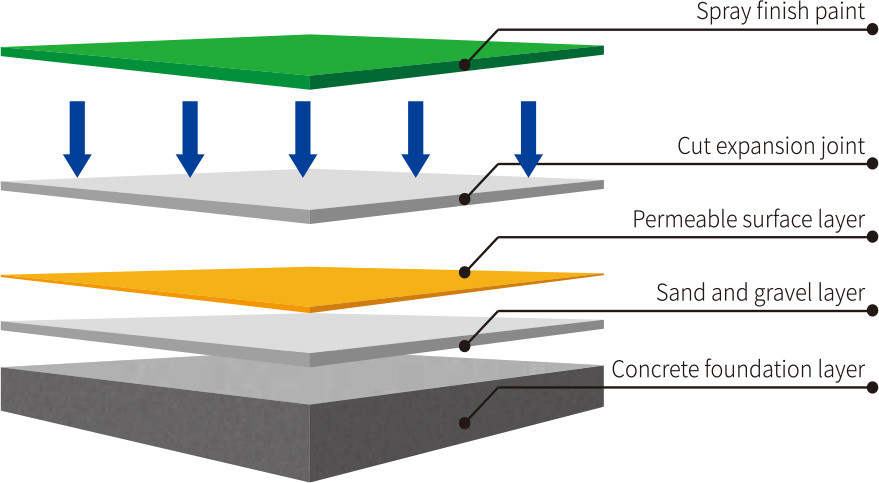

Construction Section Diagram
TECHNICAL INDEX
| PILOT PROJECT | INDEX |
Floor thickness (cm) | More than 3cm |
Compressive strength (MPa) | 30 MPa |
| Flexural strength (MPa) | 14.7 MPa |
| Frost resistance coefficient (°C) | Not lower than 2°C can be Construction,no cracking phenomenon |
| Water permeability (100mm to rainwater) | The pass rate is 94% |

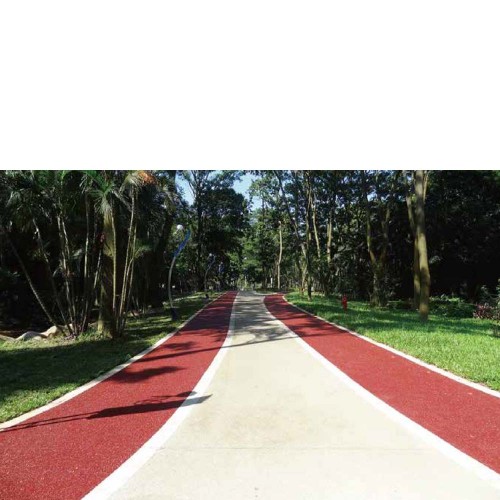

Project Case
