Epoxy Anti-static Flat Coating Flooring Materials
Epoxy anti-static flat coating flooring material with conductive carbon fiber/graphite added, surface resistance of 10 ⁴ -10 ⁶ Ω, in compliance with ASTM F150/IEC 61340 anti-static standards. Suitable for electronic workshops, laboratories, data centers and other scenarios, dustproof and wear-resistant (Mohs hardness ≥ 3H), chemical corrosion resistant, compressive strength ≥ 25MPa. The solvent based formula has a drying time of ≤ 4 hours (25 ℃), supports roll coating construction, and effectively eliminates static electricity hazards.
Scope Of Application
Especially suitable for aerospace, computer room, electronic enterprises, military enterprises, dam control center and all kinds offlammable and explosive plant ground.
Product Features
1. compressive impact resistance, high strength, good toughness.
2. resistance value 10⁵-10⁹Ω, durable anti-static performance.
3. The paint film is smooth and has texture.
4. easy to clean, pollution resistant.
Construction Technology
1. plain treatment: grinding and cleaning, the base surface is required to be dry, smooth, no empty drum;
2. bottom coating: anti-static bottom coating closed coating;
3. epoxy coating: batch scraping epoxy resin mortar;
4. laying conductive copper foil;
5. epoxy anti-static coating batch sand scraper putty;
6. Polishing and vacuuming;
7. epoxy anti-static surface coating. (Flat or self-leveling)

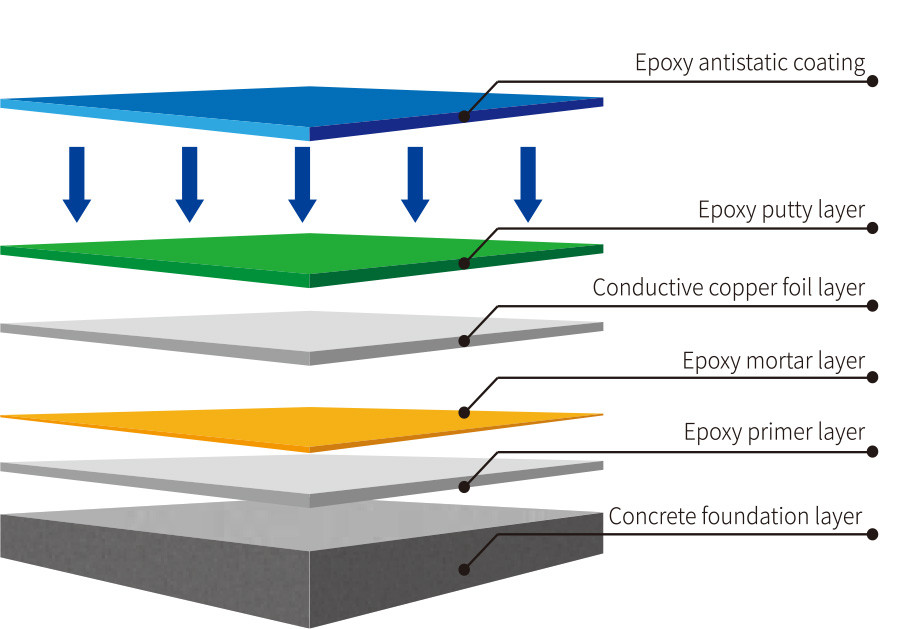

Construction Section Diagram
TECHNICAL INDEX
| PILOT PROJECT | INDEX | |
| State in container | No hard pieces, uniform state | |
Film appearance | The paint film looks normal | |
| Drying time (H,25°C) | Table dry ≤4; Practical work ≤24 | |
| Pencil hardness (H) | ≥2H | |
Tensile bonding Strength,MPa | Standard condition | ≥2.0 |
After soaking | ≥2.0 | |
Compressive strength (MPa) | ≥45 | |
Wear resistance (700g/500r. Weight loss g) | ≤0.030 | |
Impact resistance (Class ll) | 1000g steel ball, height 100cm Coating film no cracks, no peeling | |
Coefficient of dry friction | ≥0.50 | |
Water resistance (168h) | Does not blister, does not flake, allows light Slight discoloration, recovered after 2 hours | |
Oil resistance (120# solvent gasoline, 72h) | Does not blister, does not flake, allows light microdiscoloration | |
Acid resistance (10%H₂SO₄, 48h) | ||
Alkaline resistance (20%Na0H,72h) | ||
Surface resistance (Ω) | 10⁶-10⁹ | |
Volume resistance (Ω) | 10⁶-10⁹ | |
Project Case
