Prefabricated Rubber Track | EN-Certified Shock-Absorbing Roll for Schools & Sports Halls
- Model
- PU-007
Item specifics
- Color
- red, blue, green, yellow, white, etc
Review
Description
Information

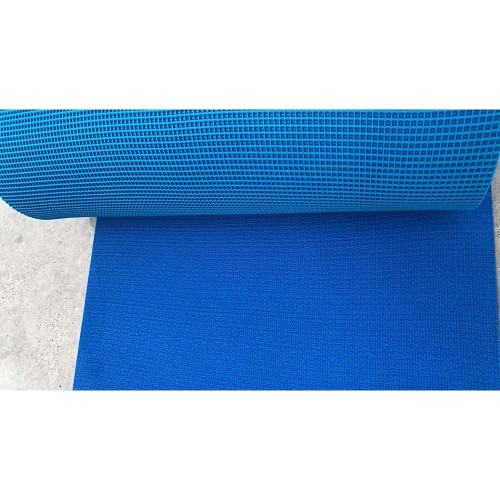

Prefabricated Rubber Track
1. The material of the surface layer is the same as that of the bottom layer, which is mainly made of pure natural rubber;
2. High quality compounding material, five stars purity, five stars ratio, excellent stability;
3. The material has the best synthesis and balance;
4. Have the best tensile strength;
5. Have the best elongation at break;
6. It has extraordinary performance in nail resistance and wear resistance;
7. Extremely outstanding resilience provides special support for the breakthrough of competition results.
Scope Of Application

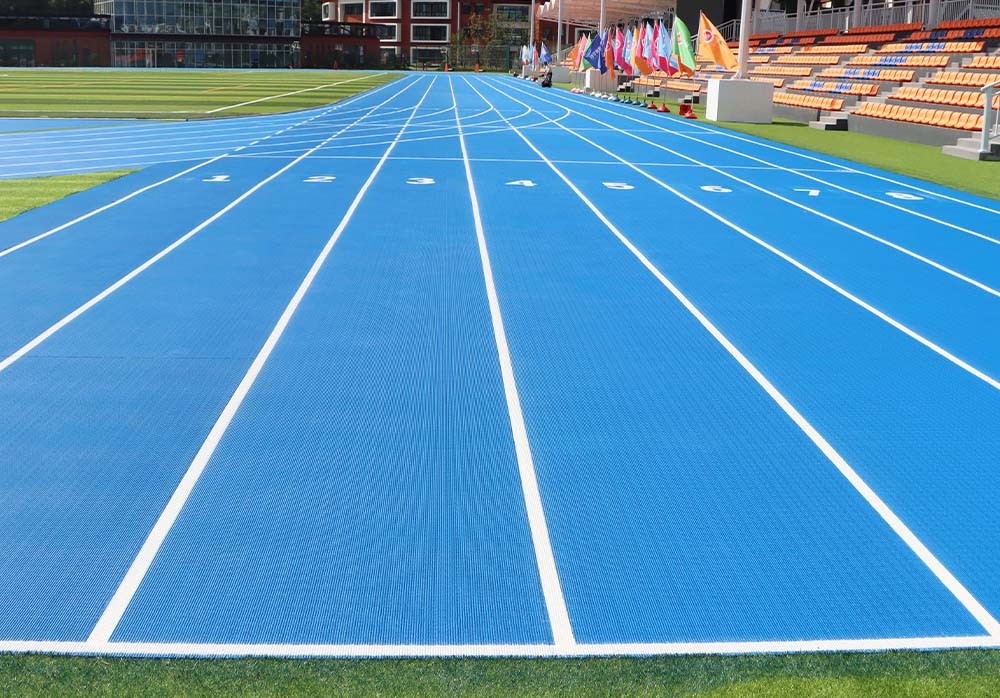

Olympic venues; Olympic training venues, Intercontinental Games competition and training venues, National Games, competition and training venues.
Product Features
1. Safety and environmental protection
2. Good weather resistance
3. Good shock absorption
4. Diverse colors
5. Will not remove particles
6. Easy installation
7. Economical and durable
8. Easy maintenance
Layered Diagram
Material Parameter
Prefabricated Rubber Track Material Parameter | |
Parameter Name | Parameter Value |
Main Ingredients | Polyether Polyol,Isocyanate |
Density | 1-1.5g/cm³ |
Polymer Content | 30-50% |
Shore A Hardness | ≥45 |
Tensile Strength (Mpa) | ≥0.6 |
Fracture Elongation Rate /% | ≥50 |
Vertical Deformation /mm | 1.0-3.0 |
Thickness | Average thickness 13mm, minimum not less than 10mm |
Slope Requirements | Longitudinal slope ≤ 0.1%, transverse slope ≤ 1.0% |
Evenness | The gap under a 2-meter straightedge shall not exceed 3mm. |
Drainage Performance | Permeable type |
| Heavy metals (lead, chromium, cadmium, mercury) /mg/kg | ≤2 |
Flame Retardancy | I |
| TVOC Emissions mg/(㎡. h) | ≤5.0 |
| Weather Resistance | Aging box 500H, performance qualified |
| Anti Slip Value (BPN. 20 ℃) | 90-110 (Dry Test) |
Ingredient List
| Prefabricated Rubber Track Ingredient List
13mm Plastic Track | |||
Name Of Proportioning Material | Model | Packaging Specifications | Net Weight |
13mm prefabricated rubber track (10mm+3mm, 1.22 meters wide, varying length), color customization | / | One roll of regular size: 1.22m wide * 15m long * 1 roll=18.3㎡ | / |

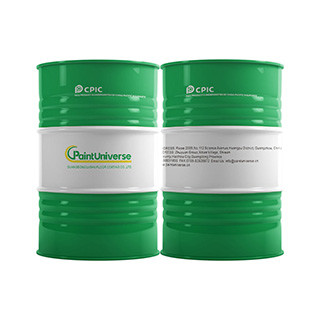

UV Resistant Glue | LS-003 | 200L 570mm diameter x 890mm height | 200kg/barrel |
| Marking Paint | LS-011 | 5L | 5.1kg/barrel |
| Lead time (within days) | 1-7 days | ||
| Sales Method | Sell all materials for the ingredient list | ||

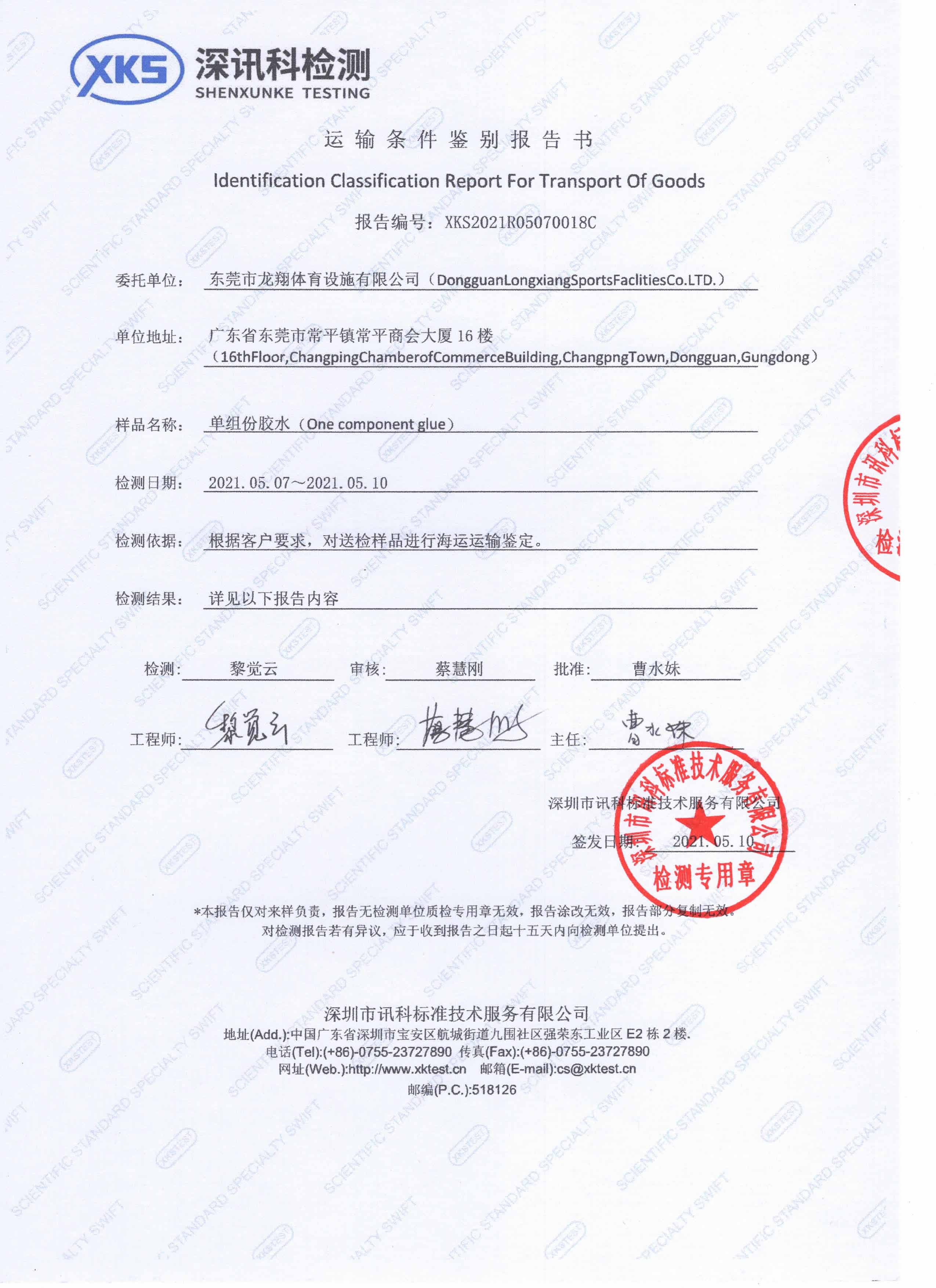

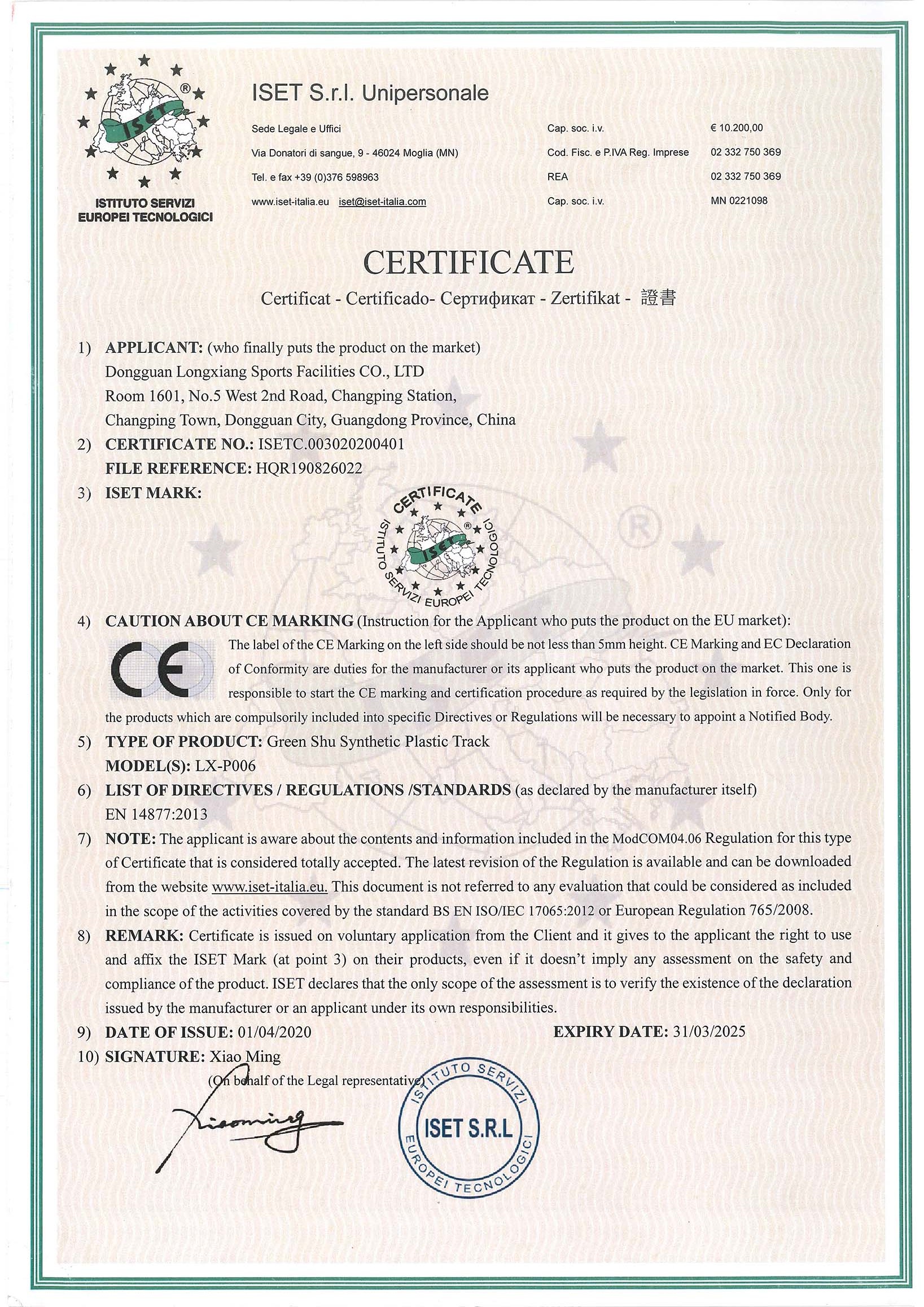

Product Certificate
