Self-Textured Rubber Track | Non-Particle Slip-Resistant Surface for School Playgrounds & Stadiums
- Model
- PU-005
Item specifics
- Color
- red, blue, green, yellow, white, etc
Review
Description
Information
Self-texturing Plastic Track Material
Self-textured rubber track is a self-cleaning pattern (non printing type) without solid EPDM particles. It is formed by mixing and stirring pure polyurethane slurry with a ratio of 1:2 between A and B on a PU base, and then undergoing chemical reactions to naturally form the pattern. The base surfaces that can be sprayed include: full plastic PU adhesive and mixed PU adhesive.
Scope Of Application
It is used for international competition runways, national competition venues, training and teaching venues of professional sports schools, teaching venues of ordinary schools, playgrounds, professional gymnasiums and multi-functional stadiums.
Product Features
1. Color stability
2. Not easy to fall off
3. Wear resistant
4. Impact resistance
5. Is it still the same as new when used frequently
6. Convenient maintenance
7. Good protection
8. Price Economy
Layered Diagram
Material Parameter
| Self-Textured Rubber Track Material Parameter | |
Parameter Name | Parameter Value |
Main Ingredients | Polyether Polyol,Isocyanate |
Density | 1-1.2g/cm³ |
Polymer Content | 40-50% |
| Shore A Hardness | ≥45 |
Tensile Strength (Mpa) | ≥0.6 |
Fracture Elongation Rate /% | ≥50 |
Vertical Deformation /mm | 1.0-3.0 |
Thickness | Average thickness 13mm, minimum not less than 10mm |
Slope Requirements | Longitudinal slope ≤ 0.1%, transverse slope ≤ 1.0% |
Evenness | The gap under a 2-meter straightedge shall not exceed 3mm. |
Drainage Performance | Non permeable type |
Heavy metals (lead, chromium, cadmium, mercury) /mg/kg | ≤2 |
Flame Retardancy | I |
TVOC Emissions mg/(㎡. h) | ≤5.0 |
Weather Resistance | Aging box 500H, performance qualified |
| Nail Resistance | Anti spiked shoes |
| Anti Slip Value (BPN. 20 ℃) | 90-110 (Dry Test) |
Ingredient List
| Self-Textured Rubber Track Ingredient List
13mm Plastic Track | |||
| Name Of Proportioning Material | Model | Packaging Specifications | Net Weight |
Waterproof Primer | LS-001 | 20L 275mm base diameter * 285mm surface diameter * 362mm height | 20kg/barrel |
Runway material PU | LS-005 | A：200L, B:300L 570mm diameter x 890mm height | A:200kg/barrel,B:300kg/barrel |
Self-Textured Topcoat Red/green/blue color | LS-008 | A：20L, B:25L 275mm base diameter * 285mm surface diameter * 362mm height | A:20kg/barrel,B:25kg/barrel |
Quartz sand | WG-SYS120 | / | 50kg/bag |
EDPM Adhesive Powder | LS-033 | / | 25kg/bag |
| Eco-friendly Catalytic Agent | LS-009 | 275mm base diameter * 285mm surface diameter * 362mm height or else | 20KG/barrel or else |
Eco-friendly Diluent | LS-010 | 20L or 200L 275mm base diameter * 285mm surface diameter * 362mm height or 570mm diameter x 890mm height | 20KG/barrel or 200kg/barrel |
Marking Paint | LS-011 | 5L | 5.1kg/barrel |
Lead time (within days) | 1-7 days, usually within 24 hours | ||
| Sales Method | Sell all materials for the ingredient list | ||

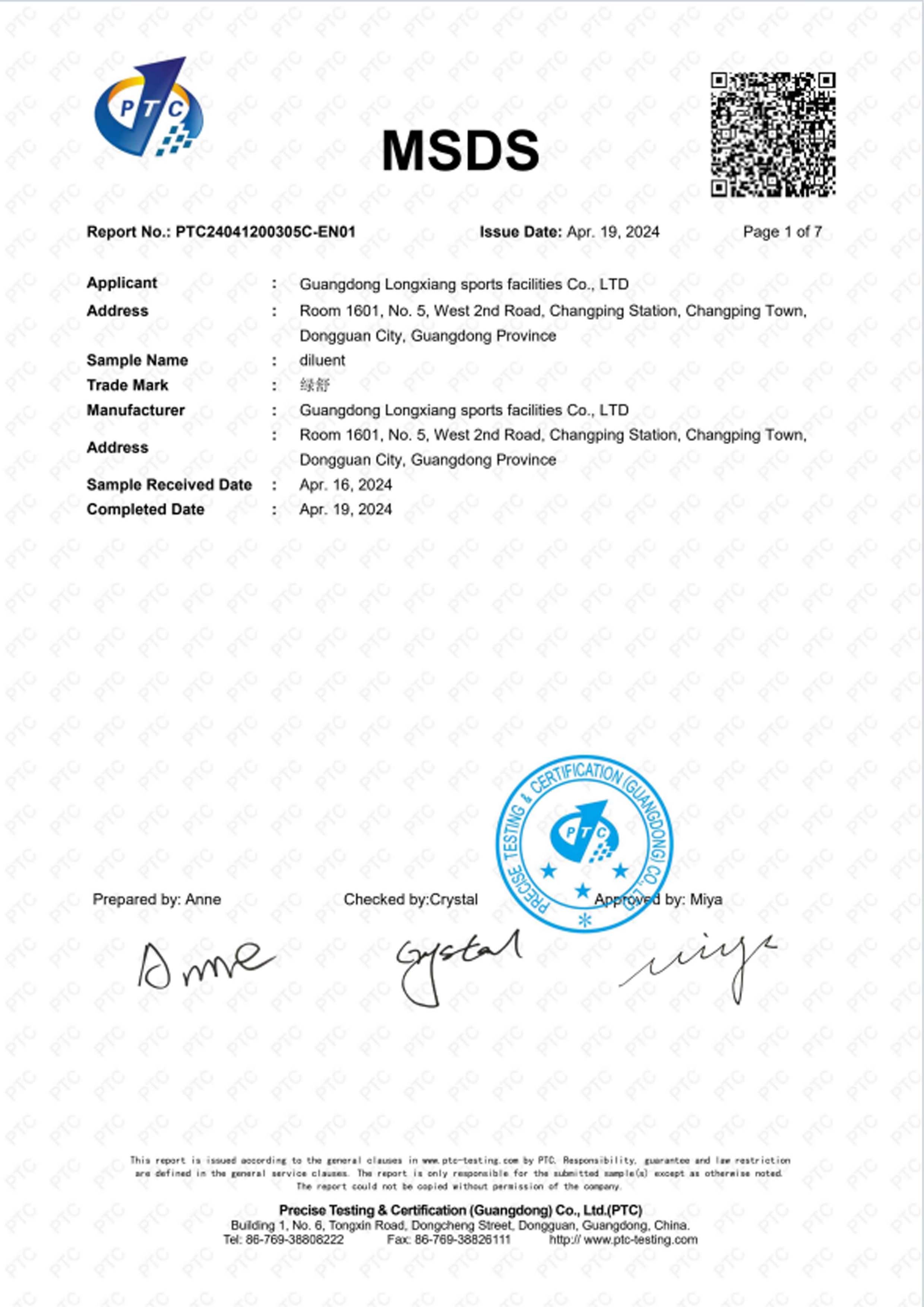

Product Certificate
